MV-LC0218 Stainless-Steel Single-Point Load Cell, 10-100 kg

METRAVON MV-LC0218 is a stainless-steel single-point load cell with 10, 20, 50 and 100 kg options. Its data includes a maximum platform size of 500 x 400 mm and separate nominal and service temperature ranges. This model has its own mounting and electrical specification; it should not inherit the values of a neighbouring single-point beam merely because the nominal output is also 2 mV/V.

Use the 500 x 400 mm platform limit with the load conditions

The stated maximum platform size is a limit to check, not a complete scale design. Confirm the receptor dimensions, dead load and the positions where the product may sit. A platform within that rectangle still needs adequate stiffness, correct attachment and freedom from side contact. Include corner-position checks in acceptance instead of relying only on a reference weight placed centrally.

Item	Value	Use / fit
Capacity choices	10, 20, 50, 100 kg	Assess gross supported load at the selected capacity.
Maximum platform size	500 x 400 mm	Check load position and attachment as well as dimensions.
Reference / bridge voltage	5 V / 1-12 V	Use this model's excitation specification.
Nonlinearity / hysteresis	Each +/-0.02% Cn	Separate sensor characteristics, not total scale uncertainty.
Creep / DR	+/-0.02% / 30 min	Include a hold test if the process sustains the load.
Nominal / service temperature	-10 to +40 / -10 to +50 deg C	Do not transfer the wider range of adjacent models.
Deflection at rated capacity	Less than 0.5 mm	Allow movement without creating a parallel load path.
Ingress-test qualification	IP68: 1 m, 100 h; IP69K listed	Confirm detailed test scope for the cleaning conditions.

What the ingress entries actually state

The catalogue lists IP68 with a test condition of 100 hours at a 1 m water column. It also lists IP69K for high-pressure water and steam-jet cleaning exposure. These entries do not define compatibility with every cleaner, unlimited immersion or the sealing of a separate connector enclosure. Obtain the applicable test scope and the supplied cable or connector arrangement before approving a washdown procedure.

Electrical checks for this stainless-steel single-point load cell

Reference excitation is 5 V and the stated bridge-voltage range is 1-12 V. Nominal sensitivity is 2.0 +/-0.2 mV/V, with zero balance of 0 +/-0.10 mV/V and input resistance of 390 +/-15 ohms. Before approving a reader, obtain the selected version's output-resistance tolerance and terminal identification; nominal sensitivity alone is insufficient to establish compatibility.

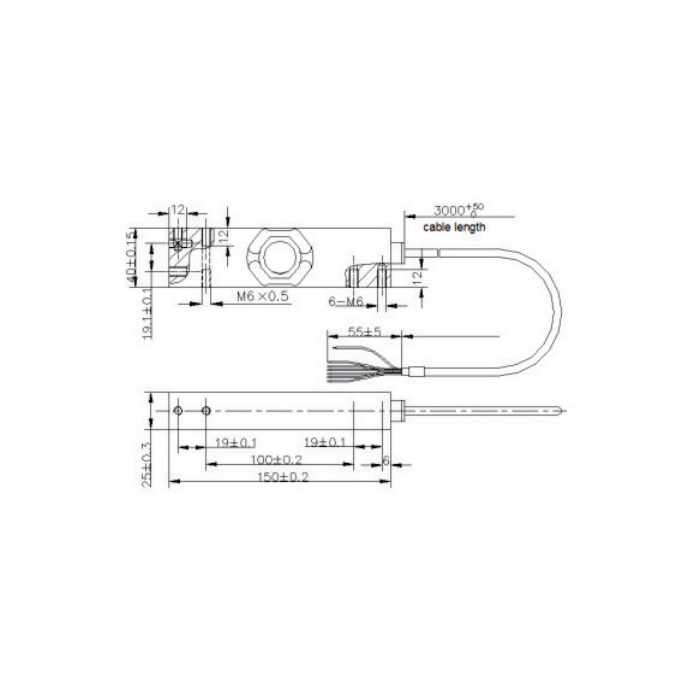

METRAVON MV-LC0218 stainless-steel single-point load cell, 10-100 kg — Stainless-steel single-point sensor; 500 x 400 mm catalogue platform limit and model-specific ingress conditions.

Sensor intervals are not a promise of scale resolution

The data gives a C3 class and 3000 load-cell intervals. Those entries do not guarantee 3000 usable display divisions after adding a platform, indicator and process vibration. Define the smallest weight change to be judged and verify the assembled scale with appropriate reference loads. Request any required conformity documents for the actual supplied version rather than treating a catalogue classification as certification.

MV-LC0217 is an IP67 alternative with a different construction specification and excitation range; compare the installation rather than substituting on capacity alone.

Platform and washdown decisions

Q1. May a 600 x 400 mm tray be used if the product is light?

That exceeds the stated 500 x 400 mm platform envelope. A lower product weight alone does not establish acceptable eccentric-loading performance. Obtain an application-specific assessment or select a sensor documented for the larger receptor.

Q2. What must be supplied for a washdown quotation?

Include the chosen capacity, platform drawing, cleaning temperature, jet exposure, chemicals and connection location. Identify the reader and the required test or conformity documents so the quoted configuration can be assessed mechanically, electrically and environmentally.

Q3. Can a prior calibration be retained when installing this version?

Recheck it. A nominal 2 mV/V output does not make sensitivity, zero, cable resistance or mounting response identical. Verify zero, span and position-dependent readings after the final installation and cleaning protection are in place.
