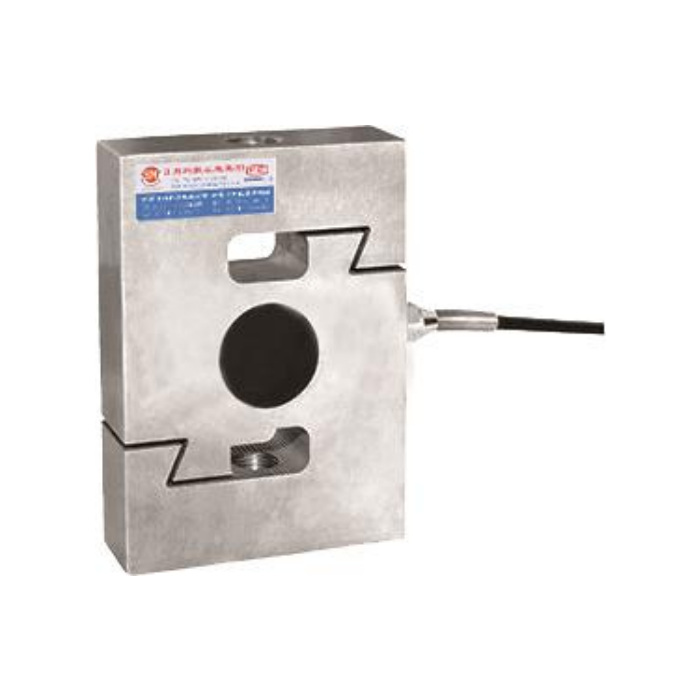

MV-LC0095 S-Type Load Cell for Axial Weighing, 100-5000 kg

METRAVON MV-LC0095 is an S-type load cell for axial weighing and force measurement, documented for tensile and compressive loading. Its specified family is 100-5000 kg. For a suspended weighing arrangement, the link carries fixture tare as well as material, and the end connections form part of the measurement path. Select the actual rating and body section before assuming that retained fittings and side supports will work.

Count the supported load before selecting the link

List the suspended vessel, attachments, normal contents and foreseeable peak events. Where several links share a load, assess the largest individual reaction rather than assuming equal distribution throughout operation. Identify guides, pipework and restraints that could carry a changing share of the weight. The bridge should measure the intended axial force; a stiff external connection that bypasses the link cannot be corrected simply by choosing a larger sensor or changing the indicator gain.

Compare the S-type load cell M12 body sections

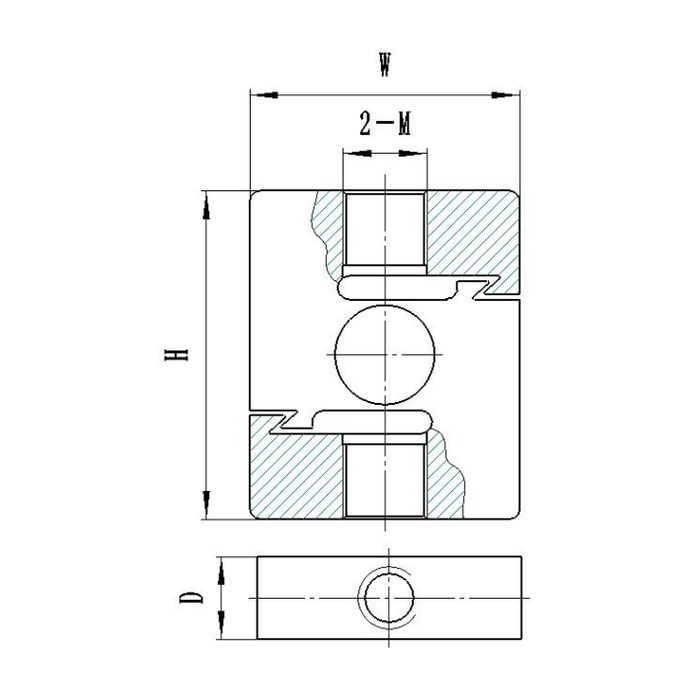

The 100-750 kg dimensional group lists H80, W70 and D19.1 mm with an M12 designation. The 1000 and 1500 kg rows retain H80, W70 and M12 but increase thickness D to 25.4 mm. Full thread pitch still needs confirmation because the reference gives only M12. A retained coupling may therefore require a thread check even before the thicker body is reviewed for guide clearance. Do not assume a universal coarse pitch from the size label.

Keep larger dimensional rows within the confirmed measuring scope

The 2000, 3000 and 5000 kg group uses H108, W95 and D25.4 mm with M18 x 1.5. The dimensional table also extends to higher tonne groups, beyond the 100-5000 kg technical range. Those outlines are not a reason to increase this product range in a quotation without a matching specification. For a higher-load project, obtain the actual model configuration and drawing rather than transferring only the larger thread size.

Check the complete weighing channel after the final suspension is fitted

Use the documented 10-12 V DC excitation and 2.0 +/-0.015 mV/V bridge with a compatible indicator. Complete the actual wiring and confirm force sign using the delivered identification; do not rely on conflicting reference colour labels. Establish empty and loaded references with the suspension, guides and connections in their working condition. Include the smallest useful inventory change and return after unloading. IP67 and -40 to +85 deg C are listed, but the cable termination and attached hardware need their own site review.

Request MV-LC0095 with suspended tare and contents, maximum link reaction, guide spacing, both end fittings and indicator details.
