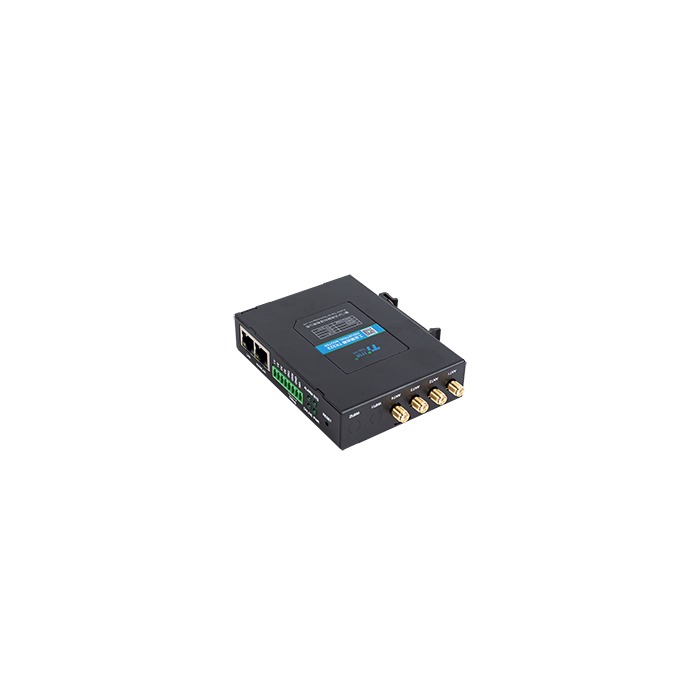

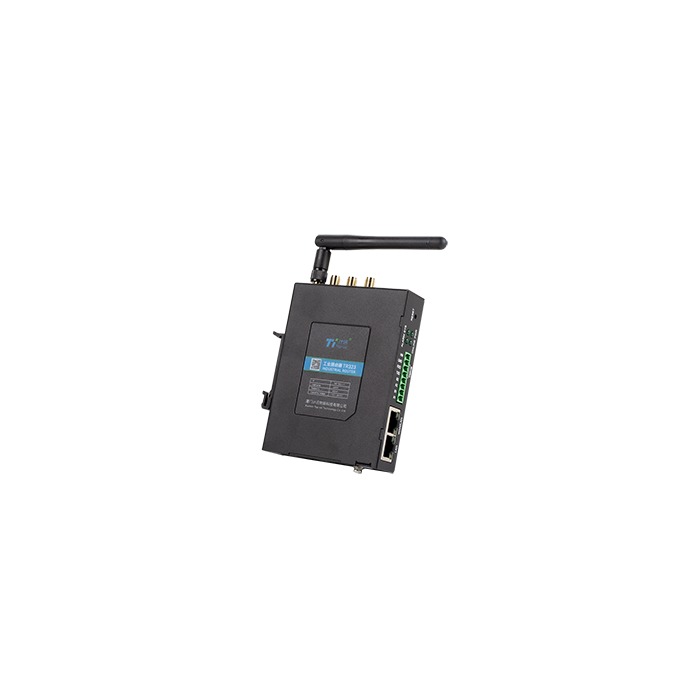

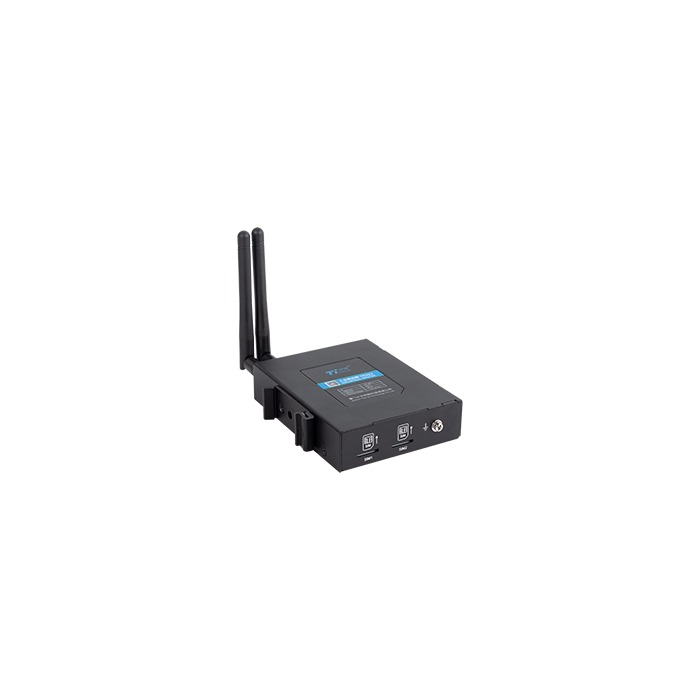

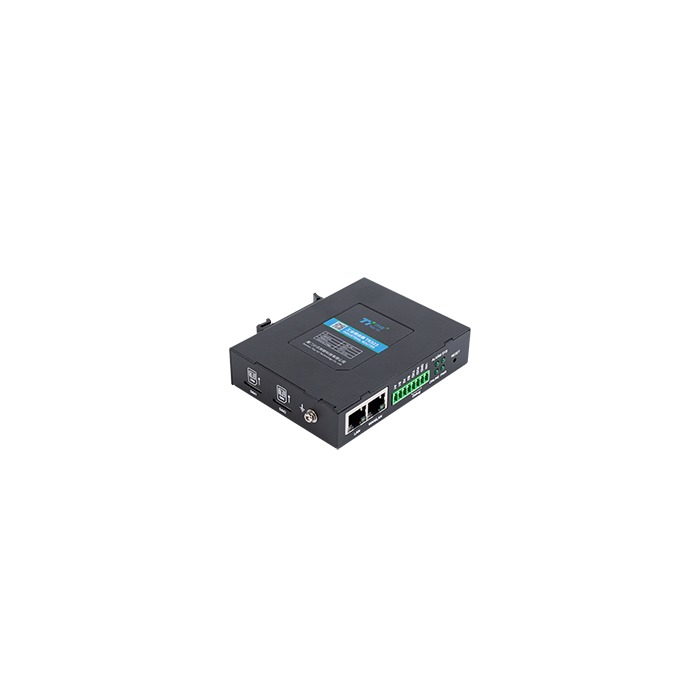

TR323 5G/RedCap Dual-Ethernet Industrial Router

selection summary

TR323 is suitable for projects requiring AGV networking with mobile devices, charging stations and smart cabinets, industrial sites requiring video or large data feed back. Its core configuration is 5G SA/NSA or 5G RedCap, compatible with 4G; two SIM options; 1 x Gigabit WAN/LAN+1 x GWAN, 1 x RS232, 2 x RS485. Check interfaces, protocols and domestic cellular versions before deciding whether to use them.

Product overview

Compact industrial routers for low-time delay, high bandwidth or 5G RedCap projects. Two gigabytes, two RS 485 and two optional SIMs are suitable for AGV, high-resolution video feed, charging facilities and the construction of a new 5G industrial site.

The procurement staff will look at these three points first.

Whether to match the sceneClear list of equipment points, number of interfaces and version of the protocol to avoid selection based solely on product name.

Full scope of procurementAntennas, power, SIM/APN, mine protection, cabinets, platform access, solidware and authorization are also identified outside the mainframe.

Basis of acceptanceThe contract contained order codes, hardware interfaces, cellular modules, protocol versions, test points and random documents.

Data links and working methods

On-site instrumentation, PLC or sensor, through Ethernet, serial or I/O access, equipment completes transmission, protocol conversion, cache or edge processing, and is sent to SCADA, integrator software, MQTT platform or operating system via 4G/5G or cable network. Stability depends on the design of a table of points, a round of interviews, network coverage, a bridging strategy and a platform interface.

Core advantages

Support for 5G SA/NA and RedCap programmes, balancing speed and terminal costs
Double gigabytes, double RS 485.
VPN, link detection and remote management for unmanned deployment

Usage scenarios

AGV Networking with mobile devices
Charge stations and smart cabinets
Industrial sites that need video or big data back.

application benefits

Construction valueReduced fragmentation converters and duplicate wiring and centralized management of on-site equipment access, network transmission and remote maintenance.

Run ValueReduction of data gaps caused by temporary break-nets through chain testing, local caches and break-points.

Operation and maintenance valueRemote view of status, configuration and upgrade to reduce the number of on-site screenings at remote sites; key changes still require the retention of version records.

Technical parameters

Product category	Industrial IoT Gateways
Beehive and Network	5G SA/NSA or 5G RedCap, compatible with 4G; twoSIM options
Hardware interface	1 x Gigabit WAN/LAN, 1 x Gigabit LAN, 1 x RS232 debug port and 2 x RS485
Communications and industrial agreements	TCP/UDP, MQTT, HTTP, JSON, Modbus RTU/TCP and VPN
Electricity	DC 5~35V, standard DC 12V/1.5A
Protection and environment	IP30,-35 ~75°C, relative humidity 93% ± 3% uncondensed
Size & Installation	104×78×24mm

Note: The cellular modules, interfaces, protocols and software functions vary in configuration, and page parameters are used for the initial selection, which is ultimately based on written technical confirmation and order code.

Selection guide

Whether a full 5G or RedCap is required; the bandwidth, time extension, and modules differ from cost.
The Chinese version of the cellular module, frequency band and operator compatibility are confirmed by project location.
Checklist SIM/BiSIM, 4G/5G version and number of antennas.
PLC agreements, OPC UA or industry statutes may rely on specialized hard copies and proposals should be preceded by a list of agreements.

specification range:5G does not automatically improve underground or metal shielding sites with weaker signals. The 4G model is usually more economical if the operation is limited to a small amount of telemetry; only bandwidth, time extension or network evolution requires an explicit choice of 5G.

Key points for installation and commissioning

Power supply, grounding, mine-protected and antenna position checks are completed and access to on-site equipment is completed; communication lines are separated from power lines.
The validation station number, Porter rate, validation place, repository and data unit by point, with local access to the platform.
Set collection cycles, reporting cycles, caches and catch caps, and simulate off-grid, off-power and off-site scenarios.
Maintenance of configuration, solid version, SIM/APN, protocol mapping and acceptance records after shipment to facilitate subsequent replacement and traceability.

Procurement and Technical Confirmation Checklist

On-site equipment brand type, quantity, interface, protocol, depository table and data unit.
4G/5G operator, frequency band, SIM/APN, fixed IP/VPN, monthly traffic and signal test results.
Electricity supply range, maximum power consumption, container protection, mine protection, humidity and installation space.
Platform address, reporting format, collection/reporting cycle, breakpoint relay, remote upgrade and account number privileges.
Standards and selection functions, solid version, authorized costs, annexes, quality assurance and acceptance methods.

FAQ

What is TR323 for?

TR323 is used mainly for compact industrial routers for low-time delay, high bandwidth or 5G RedCap projects. The selection shall first confirm the on-site equipment, interfaces, protocols, network and power supply, rather than be based only on 4G or 5G names.

Could TR323 access PLC, instrument or sensor?

Yes, but with actual interfaces and protocols. The reference interface is 1 x G.W.N./LAN+1 x G.N.L., 1 x RS232, 2 x RS485; in the case of private PLC agreements or exclusive statutes, lists of equipment and contact lists should be provided first.

What communication protocols do TR323 support?

Reference agreements include TCP/UDP, MQTT, HTTP, JSON, Modbus RTU/TCP and VPN. Some industry agreements, platform plugins or secondary development functions may require the designation of solids, with the version, authorization and delivery to be confirmed prior to ordering.

Can the 4G/5G version of TR323 be used directly by the three main domestic operators?

Requires confirmation by specific module and order code. Product lines may include different national/regional bands; domestic projects should check mobile, connectivity, telecommunications frequency bands, SIM/APN, on-site coverage and local access requirements, and should not substitute “global frequency bands” for an optional identification.

Can TR323 be installed directly outdoors?

The reference environmental condition is IP30, -35 ~75°C, with a relative humidity of 93% ± 3% without condensation. The IP30 product should be installed in containers with water, dust, mine and temperature-control conditions and cannot be used as outdoor water protection equipment.

What information is required for request TR323?

Please provide a list of the points of equipment, the number of interfaces, protocols and repositories, the collection and reporting cycle, the central platform, the cellular operator, the power supply, the installation of the environment, the requirements for remote maintenance and the selection functions required.

Ordering instructions

This page does not write optional features into standard configurations. In cases involving cellular bands, industry regulations, State secrets, secondary development, certification or platform authorization, a written confirmation of the corresponding version must be obtained prior to the next list.
