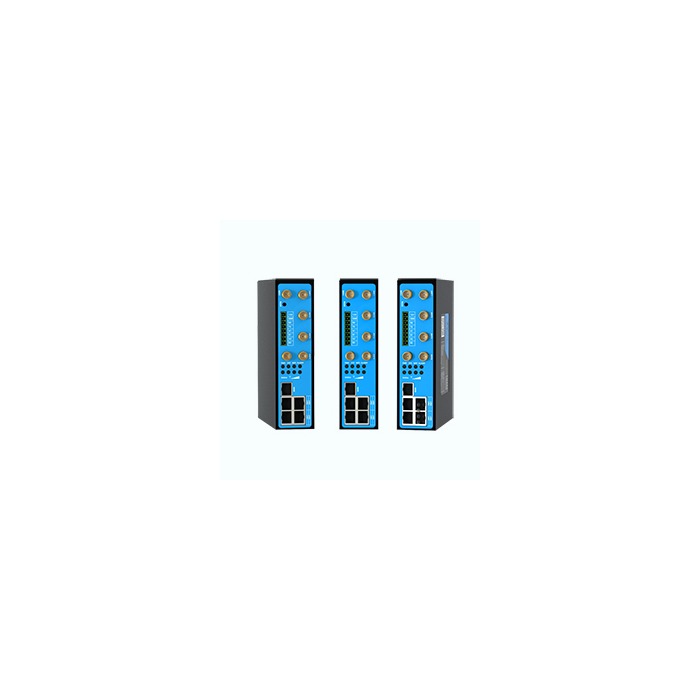

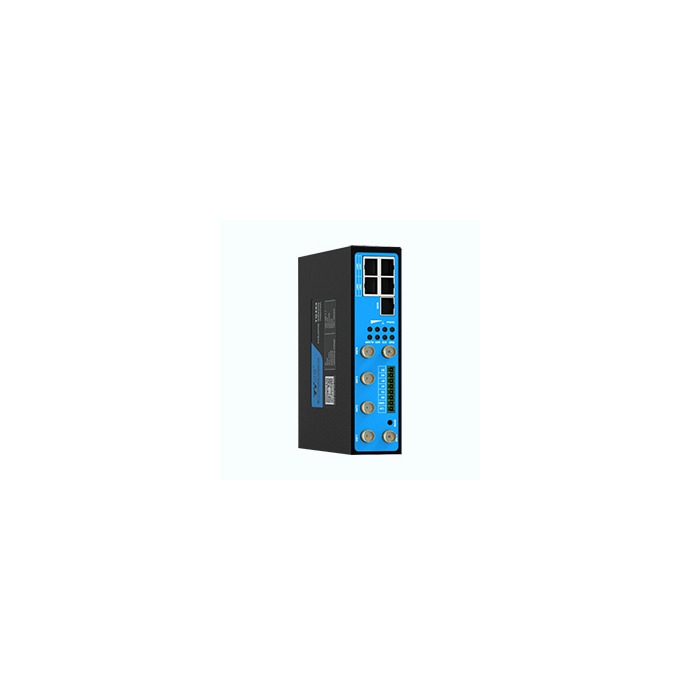

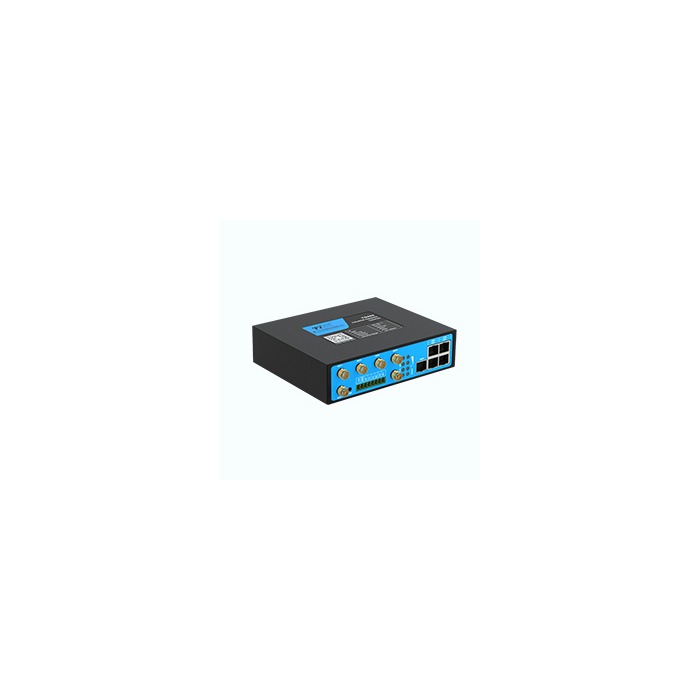

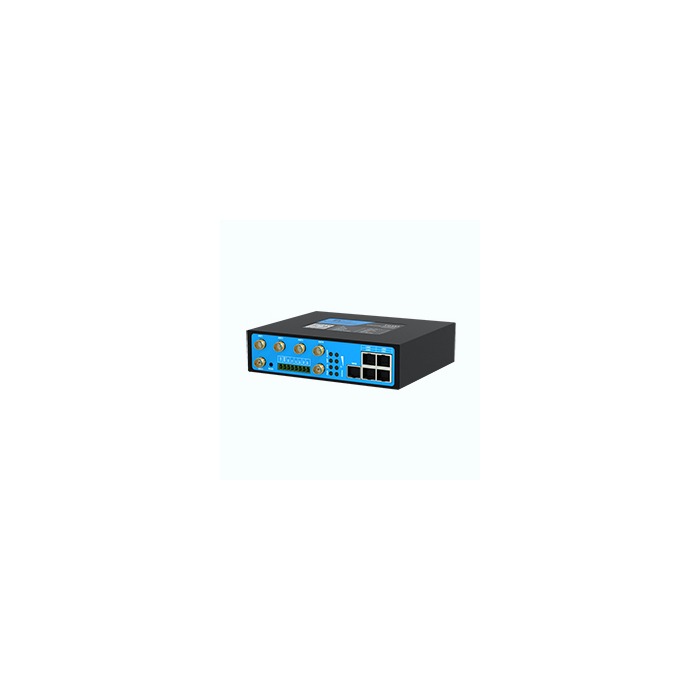

TG453 5G Industrial Data Gateway

selection summary

TG453 is suitable for projects requiring industrial PLC centralized networking, AGV and smart manufacturing sites, environmental protection, hydro and energy data aggregation. Its core configuration is 5G/4G, Ethernet, 2.4 GHz Wi-Fi; single-mode double card/dual-mode double card optional; 4 x LAN, 1 x WAN, 1 x RS232 debug port, 2 x RS485, TF card slot. Check interfaces, protocols and domestic cellular versions before deciding whether to use them.

Product overview

Industrial data gateway for multi-equipment access, 5G upper rows and protocol conversion. Five Ethernet portals, double RS485 and local storage are suitable for projects that require greater data processing capabilities than industrial routers, but do not yet require high-calculation AI.

The procurement staff will look at these three points first.

Whether to match the sceneClear list of equipment points, number of interfaces and version of the protocol to avoid selection based solely on product name.

Full scope of procurementAntennas, power, SIM/APN, mine protection, cabinets, platform access, solidware and authorization are also identified outside the mainframe.

Basis of acceptanceThe contract contained order codes, hardware interfaces, cellular modules, protocol versions, test points and random documents.

Data links and working methods

On-site instrumentation, PLC or sensor, through Ethernet, serial or I/O access, equipment completes transmission, protocol conversion, cache or edge processing, and is sent to SCADA, integrator software, MQTT platform or operating system via 4G/5G or cable network. Stability depends on the design of a table of points, a round of interviews, network coverage, a bridging strategy and a platform interface.

Core advantages

Five web portals plus double RS485 with centralized access to multiple types of equipment
Support for 5G, double SIM/bimodule and chain backup options
Local storage, protocol conversion and long-range mass transport capability

Usage scenarios

Industrial PLC centralized networking
AGV and smart manufacturing sites
Environmental, hydro and energy data aggregation

application benefits

Construction valueReduced fragmentation converters and duplicate wiring and centralized management of on-site equipment access, network transmission and remote maintenance.

Run ValueReduction of data gaps caused by temporary break-nets through chain testing, local caches and break-points.

Operation and maintenance valueRemote view of status, configuration and upgrade to reduce the number of on-site screenings at remote sites; key changes still require the retention of version records.

Technical parameters

Product category	Industrial IoT Gateways
Beehive and Network	5G/4G, Ethernet, 2.4 GHz Wi-Fi; single-mode double card/two-mode double card Choose
Hardware interface	4 x LAN, 1 x WAN, 1 x RS232 debug port, 2 x RS485, TF card slot
Communications and industrial agreements	MQTT, HTTP, JSON, Modbus RTU/TCP, OPC UA and VPN
Electricity	DC 5~35V, standard DC 12V/1.5A
Protection and environment	IP30;Ref. -35 ~ 75°C, as per confirmation certificate for specific hardware versions
Size & Installation	Small size industrial metal shell

Note: The cellular modules, interfaces, protocols and software functions vary in configuration, and page parameters are used for the initial selection, which is ultimately based on written technical confirmation and order code.

Selection guide

The Chinese frequency, SIM programme and actual coverage of the 5G module were confirmed and could not be written only as "net-wide".
To collate the required PLC, OPC UA, Modbus and platform protocols and confirm whether they are standard solids.
Accounting for gateways, serials, questionnaires and local storage by number of access devices.
Video recognition is required with clear resolution, road numbers and algorithms; general data gateway configuration cannot default on AI analysis.

specification range:Fits to 5G data aggregation and common protocol conversion. Where a large number of historical databases, Docker, AI reasoning or complex secondary developments are involved, the use of TG465 is recommended and a separate calculus assessment is performed.

Key points for installation and commissioning

Power supply, grounding, mine-protected and antenna position checks are completed and access to on-site equipment is completed; communication lines are separated from power lines.
The validation station number, Porter rate, validation place, repository and data unit by point, with local access to the platform.
Set collection cycles, reporting cycles, caches and catch caps, and simulate off-grid, off-power and off-site scenarios.
Maintenance of configuration, solid version, SIM/APN, protocol mapping and acceptance records after shipment to facilitate subsequent replacement and traceability.

Procurement and Technical Confirmation Checklist

On-site equipment brand type, quantity, interface, protocol, depository table and data unit.
4G/5G operator, frequency band, SIM/APN, fixed IP/VPN, monthly traffic and signal test results.
Electricity supply range, maximum power consumption, container protection, mine protection, humidity and installation space.
Platform address, reporting format, collection/reporting cycle, breakpoint relay, remote upgrade and account number privileges.
Standards and selection functions, solid version, authorized costs, annexes, quality assurance and acceptance methods.

FAQ

What's the problem with TG453?

TG453 is used mainly for industrial data gateways for multi-equipment access, 5G upper rows and protocol conversions. The selection shall first confirm the on-site equipment, interfaces, protocols, network and power supply, rather than be based only on 4G or 5G names.

Can TG453 access PLC, instrument or sensor?

Yes, but with actual interfaces and protocols. The reference interface is 4 x LAN+1 x WAN, 1 x RS232, 2 x RS485, TF cards; in the case of private PLC agreements or exclusive statutes, a list of equipment and a contact list should be provided.

What communication protocols do TG453 support?

Reference protocols include MQTT, HTTP, JSON, Modbus RTU/TCP, OPC UA and VPN. Some industry agreements, platform plugins or secondary development functions may require the designation of solids, with the version, authorization and delivery to be confirmed prior to ordering.

Can the 4G/5G version of TG453 be used directly by the three main domestic operators?

Requires confirmation by specific module and order code. Product lines may include different national/regional bands; domestic projects should check mobile, connectivity, telecommunications frequency bands, SIM/APN, on-site coverage and local access requirements, and should not substitute “global frequency bands” for an optional identification.

Can TG453 be installed directly outdoors?

The reference environment condition is IP30; reference - 35 ~ 75°C, with the specific hardware version based on the confirmation. The IP30 product should be installed in containers with water, dust, mine and temperature-control conditions and cannot be used as outdoor water protection equipment.

What information is required for the request for TG453?

Please provide a list of the points of equipment, the number of interfaces, protocols and repositories, the collection and reporting cycle, the central platform, the cellular operator, the power supply, the installation of the environment, the requirements for remote maintenance and the selection functions required.

Ordering instructions

This page does not write optional features into standard configurations. In cases involving cellular bands, industry regulations, State secrets, secondary development, certification or platform authorization, a written confirmation of the corresponding version must be obtained prior to the next list.
