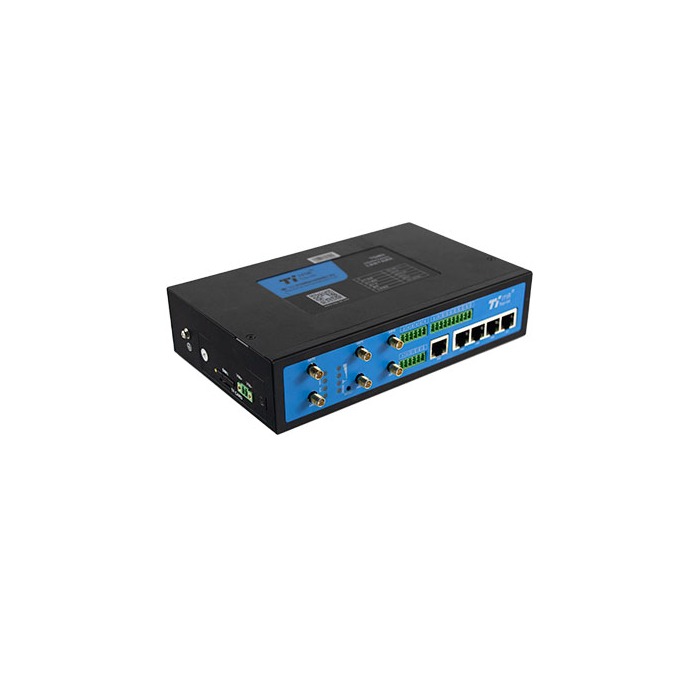

TG463 5G/RedCap Industrial IoT Gateway

selection summary

TG463 is a suitable project for industrial sites that require PLC, mix of cameras and instrumentation, intelligent manufacturing, energy and environmental data aggregation, and 5G/RedCap evolution. Its core configuration is 5G/5G RedCap and 4G, G-Ethernet; 2.4 GHz Wi-Fi alignment capacity is confirmed by configuration with 5.8 GHz Wi-Fi options; 1 x GWAN, 4 x G-LAN (road 4 PoE option), 1 x RS232, 1 x RS485, 3 x AI, 2 x DI, 3 x relays, plus USB and TF cards. Check interfaces, protocols and domestic cellular versions before deciding whether to use them.

Product overview

5G/RedCapindustrial IoT gateway for multi-equipment access, gigabytes transmission and light edge processing. Five gigawebs are connected to PLC, cameras and controllers, and keep serials, simulations, switches and relay interfaces.

The procurement staff will look at these three points first.

Whether to match the sceneClear list of equipment points, number of interfaces and version of the protocol to avoid selection based solely on product name.

Full scope of procurementAntennas, power, SIM/APN, mine protection, cabinets, platform access, solidware and authorization are also identified outside the mainframe.

Basis of acceptanceThe contract contained order codes, hardware interfaces, cellular modules, protocol versions, test points and random documents.

Data links and working methods

On-site instrumentation, PLC or sensor, through Ethernet, serial or I/O access, equipment completes transmission, protocol conversion, cache or edge processing, and is sent to SCADA, integrator software, MQTT platform or operating system via 4G/5G or cable network. Stability depends on the design of a table of points, a round of interviews, network coverage, a bridging strategy and a platform interface.

Core advantages

1 G-WAN and 4 G-LAN, PoEco 4 Choose
Support for 5G/RedCap, links backup and multicentre transmission
Secondary capacity development with serial, AI, DI, relay and Linux

Usage scenarios

Mixed access to PLC, cameras and instruments
Compilation of smart manufacturing, energy and environmental data
5G/RedCap evolution industrial site

application benefits

Construction valueReduced fragmentation converters and duplicate wiring and centralized management of on-site equipment access, network transmission and remote maintenance.

Run ValueReduction of data gaps caused by temporary break-nets through chain testing, local caches and break-points.

Operation and maintenance valueRemote view of status, configuration and upgrade to reduce the number of on-site screenings at remote sites; key changes still require the retention of version records.

Technical parameters

Product category	Industrial IoT Gateways
Beehive and Network	5G/5G RedCap and 4G, G-Ethernet; 2.4 GHz Wi-Fi alignment capacity confirmed by configuration with 5.8 GHz Wi-Fi options
Hardware interface	1 x Gigabit WAN, 4 x Gigabit LAN (4 x PoE optional), 1 x RS232, 1 x RS485, 3 x AI, 2 x DI, 3 x relay outputs, USB and TF card
Communications and industrial agreements	Modbus RTU/TCP, OPC UA, PROFINET and PROFIBUS-DP; IEC 101/104, DL/T645, commercial cryptography and third-party protocols supported as specified by firmware
Electricity	DC 5~35V, standard DC 12V/1.5A; 5 controlled power outputs
Protection and environment	IP30,-35~75°C, relative humidity 95% uncondensed
Size & Installation	206 x 127 x 48.3 mm, industrial metal shell

Note: The cellular modules, interfaces, protocols and software functions vary in configuration, and page parameters are used for the initial selection, which is ultimately based on written technical confirmation and order code.

Selection guide

The full 5G or RedCap module was first identified and the domestic operator frequency, SIM programme and site coverage were checked.
The number, single power and total power of the GgbW and PoE equipment are measured, and PoE is subject to the order code when selected.
Checks whether the 3-line AI, 2-line D, 3-way relays and serials meet the table of points and identifies 4-20mA or 0-5V inputs.
State secrets, industry statutes, PLC agreements, secondary development and video analysis are required to confirm solids, authorizations and acceptance methods.

specification range:TG463 is suitable for gigabytes of networking, data acquisition and light edge treatment, but cannot be based solely on “support AI” as an alternative to calculus assessment. PoE, 5.8 GHz Wi-Fi, double-carded double-model, State secrets and industry agreements are confirmed by specific configuration.

Key points for installation and commissioning

Power supply, grounding, mine-protected and antenna position checks are completed and access to on-site equipment is completed; communication lines are separated from power lines.
The validation station number, Porter rate, validation place, repository and data unit by point, with local access to the platform.
Set collection cycles, reporting cycles, caches and catch caps, and simulate off-grid, off-power and off-site scenarios.
Maintenance of configuration, solid version, SIM/APN, protocol mapping and acceptance records after shipment to facilitate subsequent replacement and traceability.

Procurement and Technical Confirmation Checklist

On-site equipment brand type, quantity, interface, protocol, depository table and data unit.
4G/5G operator, frequency band, SIM/APN, fixed IP/VPN, monthly traffic and signal test results.
Electricity supply range, maximum power consumption, container protection, mine protection, humidity and installation space.
Platform address, reporting format, collection/reporting cycle, breakpoint relay, remote upgrade and account number privileges.
Standards and selection functions, solid version, authorized costs, annexes, quality assurance and acceptance methods.

FAQ

What's TG463 for?

TG463 is used mainly for 5G/RedCapindustrial IoT gateway for multi-equipment access, gigabytes transmission and light-cargo processing. The selection shall first confirm the on-site equipment, interfaces, protocols, network and power supply, rather than be based only on 4G or 5G names.

Can TG463 access PLC, instrument or sensor?

Yes, but with actual interfaces and protocols. The reference interface is 1 x GWAN, 4 x GLAN (optional PoE on route 4), 1 x RS232, 1 x RS485, 3 x AI, 2 x DI, 3 x relays, plus USB and TF cards; in the case of private PLC agreements or exclusive statutes, a list of equipment and contact lists should be provided first.

Which communication protocols do TG463 support?

Reference agreements include Modbus RTU/TCP, OPC UA, Profinet, Profibus-DP and Platform agreements; IEC 101/104, DL/T645, State secrets and third-party agreements confirmed as solid. Some industry agreements, platform plugins or secondary development functions may require the designation of solids, with the version, authorization and delivery to be confirmed prior to ordering.

Can the 4G/5G version of TG463 be used directly by the three main domestic operators?

Requires confirmation by specific module and order code. Product lines may include different national/regional bands; domestic projects should check mobile, connectivity, telecommunications frequency bands, SIM/APN, on-site coverage and local access requirements, and should not substitute “global frequency bands” for an optional identification.

Can TG463 be installed directly outdoors?

The reference environmental condition is IP30, -35 ~75°C with 95% relative humidity without condensation. The IP30 product should be installed in containers with water, dust, mine and temperature-control conditions and cannot be used as outdoor water protection equipment.

What information is required for the request for TG463?

Please provide a list of the points of equipment, the number of interfaces, protocols and repositories, the collection and reporting cycle, the central platform, the cellular operator, the power supply, the installation of the environment, the requirements for remote maintenance and the selection functions required.

Ordering instructions

This page does not write optional features into standard configurations. In cases involving cellular bands, industry regulations, State secrets, secondary development, certification or platform authorization, a written confirmation of the corresponding version must be obtained prior to the next list.
