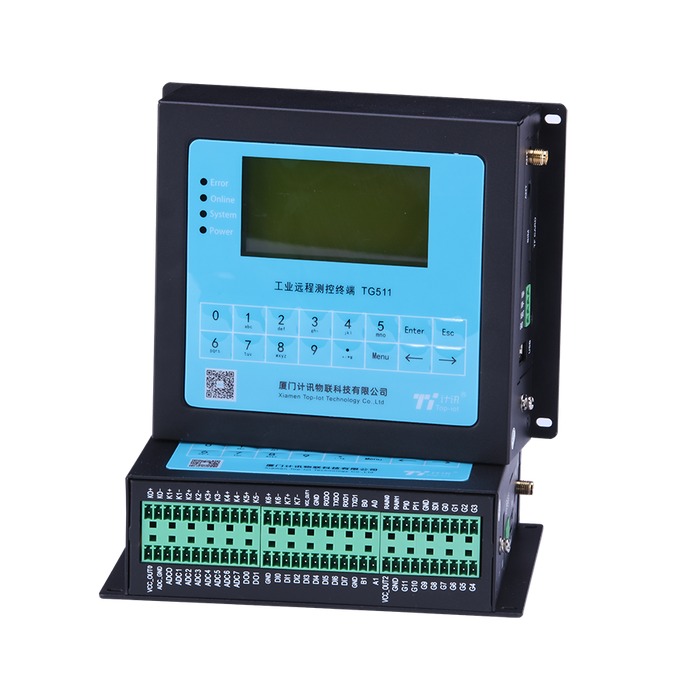

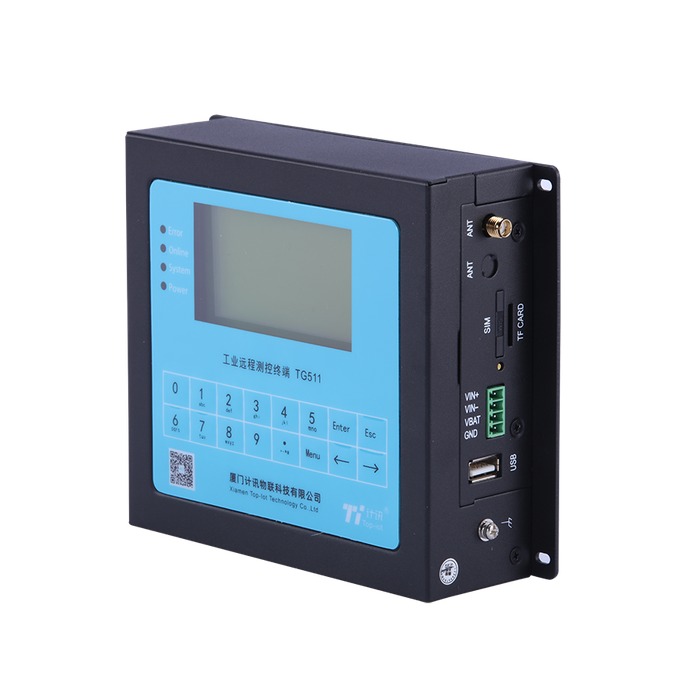

TG511 Multi-Channel Display Data Acquisition RTU

selection summary

TG511 is suitable for projects requiring hydro-water and rainfall stations, environmental online monitoring and vents, heating, gas and integrated energy monitoring. Its core configuration is cellular network, SMS; BeiDou/PSTN/ ultra-shortwave/ZigBee, etc., project-by-project; 2xRS232, 4xRS485, 8xAI, 8xDI, 2xDO, default 2-way relays (up to 8 roads), rainfall/pulse interfaces. Check interfaces, protocols and domestic cellular versions before deciding whether to use them.

Product overview

Remote monitoring and control terminals that are more accessible and require on-site display and keyboard operations. Multiple estuaries, 8-way simulations, 8-way switches, relays and rainfall interfaces, which can be used for unmanned stations such as hydro, environmental, energy, etc.

The procurement staff will look at these three points first.

Whether to match the sceneClear list of equipment points, number of interfaces and version of the protocol to avoid selection based solely on product name.

Full scope of procurementAntennas, power, SIM/APN, mine protection, cabinets, platform access, solidware and authorization are also identified outside the mainframe.

Basis of acceptanceThe contract contained order codes, hardware interfaces, cellular modules, protocol versions, test points and random documents.

Data links and working methods

On-site instrumentation, PLC or sensor, through Ethernet, serial or I/O access, equipment completes transmission, protocol conversion, cache or edge processing, and is sent to SCADA, integrator software, MQTT platform or operating system via 4G/5G or cable network. Stability depends on the design of a table of points, a round of interviews, network coverage, a bridging strategy and a platform interface.

Core advantages

Multi-channel capture, control and field display integration
16MB built-in storage and extended TF cards
Support for multi-centre reporting, cut-off and multiple modes of communication

Usage scenarios

Hydrological water resources and rain stations
Environmental Online Monitoring and Portment Station
Heat, gas and integrated energy monitoring

application benefits

Construction valueReduced fragmentation converters and duplicate wiring and centralized management of on-site equipment access, network transmission and remote maintenance.

Run ValueReduction of data gaps caused by temporary break-nets through chain testing, local caches and break-points.

Operation and maintenance valueRemote view of status, configuration and upgrade to reduce the number of on-site screenings at remote sites; key changes still require the retention of version records.

Technical parameters

Product category	Data Acquisition RTUs
Beehive and Network	Honeycomb network, text messages; BeiDou/PSTN/ ultra-shortwave/ZigBee etc. by project configuration
Hardware interface	2 x RS232, 4 x RS485, 8 x AI, 8 x DI, 2 x DO, 2 relay outputs as standard (up to 8), plus rainfall and pulse inputs
Communications and industrial agreements	Modbus RTU/TCP and industry-specific or custom protocols; supports up to 5 data centers
Electricity	DC 5~35V, standard DC 12V/1.5A; approximately 40~80mA at 12V
Protection and environment	IP30; -20~+75°C; 95% RH, non-condensing
Size & Installation	154.2 x 127 x 46.6 mm, approximately 900g

Note: The cellular modules, interfaces, protocols and software functions vary in configuration, and page parameters are used for the initial selection, which is ultimately based on written technical confirmation and order code.

Selection guide

Check the adequacy of 2 Rs232, 4 Rs485, 8 AI and 8 Ds by table of points and mark the retention.
The default number of relays differs from the maximum extension, and the actual number of paths and load types are specified when ordering.
Make it clear whether LCD local operations, photo capture, beige or other communications are required.
Confirmation of industry charter versions, platform addresses, number of centres, collection/reporting cycles and number of offline days.

specification range:Multi-channel remote monitoring is appropriate, but IP30 still requires to be installed in a box. An additional IP65/IP68 box, mine protection, power supply and temperature control should be provided for an outdoor naked, long-term inundated or highly corrosive environment.

Key points for installation and commissioning

Power supply, grounding, mine-protected and antenna position checks are completed and access to on-site equipment is completed; communication lines are separated from power lines.
The validation station number, Porter rate, validation place, repository and data unit by point, with local access to the platform.
Set collection cycles, reporting cycles, caches and catch caps, and simulate off-grid, off-power and off-site scenarios.
Maintenance of configuration, solid version, SIM/APN, protocol mapping and acceptance records after shipment to facilitate subsequent replacement and traceability.

Procurement and Technical Confirmation Checklist

On-site equipment brand type, quantity, interface, protocol, depository table and data unit.
4G/5G operator, frequency band, SIM/APN, fixed IP/VPN, monthly traffic and signal test results.
Electricity supply range, maximum power consumption, container protection, mine protection, humidity and installation space.
Platform address, reporting format, collection/reporting cycle, breakpoint relay, remote upgrade and account number privileges.
Standards and selection functions, solid version, authorized costs, annexes, quality assurance and acceptance methods.

FAQ

What's TG511 for?

TG511 is used primarily for remote monitoring and control terminals that are more accessible and require on-site display and keyboard operations. The selection shall first confirm the on-site equipment, interfaces, protocols, network and power supply, rather than be based only on 4G or 5G names.

Can TG511 access PLC, instrument or sensor?

Yes, but with actual interfaces and protocols. The reference interfaces are 2xRS232, 4xRS485, 8xAI, 8xDI, 2xDO, default 2x2 repeaters (up to 8x), rainfall/pulse interfaces; in the case of private PLC agreements or exclusive statutes, a list of equipment and a list of points of communication should be provided.

Which communication protocols do TG511 support?

Reference agreements include Modbus RTU/TCP, industry statutes, custom agreements; up to five data centres. Some industry agreements, platform plugins or secondary development functions may require the designation of solids, with the version, authorization and delivery to be confirmed prior to ordering.

Can the 4G/5G version of TG511 be used directly by the three main domestic operators?

Requires confirmation by specific module and order code. Product lines may include different national/regional bands; domestic projects should check mobile, connectivity, telecommunications frequency bands, SIM/APN, on-site coverage and local access requirements, and should not substitute “global frequency bands” for an optional identification.

Can TG 511 be installed directly outside?

The reference environmental condition is IP30, 20+75°C, 95% of which is not condensed. The IP30 product should be installed in containers with water, dust, mine and temperature-control conditions and cannot be used as outdoor water protection equipment.

What information is required for the request for TG511?

Please provide a list of the points of equipment, the number of interfaces, protocols and repositories, the collection and reporting cycle, the central platform, the cellular operator, the power supply, the installation of the environment, the requirements for remote maintenance and the selection functions required.

Ordering instructions

This page does not write optional features into standard configurations. In cases involving cellular bands, industry regulations, State secrets, secondary development, certification or platform authorization, a written confirmation of the corresponding version must be obtained prior to the next list.
